Markilux 779/879 under-glass shade system

Motorised 230v RTS radio remote or hard wired WT control operation

  • Maximum width 6000mm
  • Maximum depth 6000mm
  • Maximum area 27sq meters

Manual Gear winding   crank operation with removable handle

  • Maximum width 6000mm
  • Maximum depth 6000mm
  • Maximum area 27sq meters

German engineered and described as the best manufacturer of sunshade systems in the world, Markilux know what a shading system should be designed to do.

Our 779/879 Under-glass awning with cleanly designed, quadratic cassette and harmoniously matched, angular guide tracks are designed and built for large glass areas both horizontal and sloping. The ingenious tensioning system and the sturdy design allow areas of up to 27 m2 to be shaded.
With many features, our 779/879 can be manufactured up to 6 meters wide or long with no wires or support bars
Many features available include lighting combinations in both LED spot and strip light options to provide a pleasant atmosphere during the evening.

  • Choice of square (779) or round (879) cassette style
  • Tried and tested tensioning system with drive belts and integrated gas pistons delivering a taught fabric
  • Optional Tracfix version to encapsulate the fabric into the guides
  • Various lighting options to create an individual style

The ingenious tensioning system and the sturdy design allow areas of up to 27 m2 to be shaded.

Technology

Optional Tracfix system for secure lateral cover guidance without gaps between the cover and side guide tracks.
Low maintenance tensioning module with gas ¬pistons, ball bearing ¬mounted deflection rollers with smooth operation.

Fabrics

All the fabric patterns in the current Markilux collection are from sunvas snc sunsilk snc, visutex as well as ­(depending on size)­ sunvas transolair. Without Tracfix: perfotex with sun-reflecting aluminium coating.

Atmosphere

Smart optional accessories for enhanced comfort: wireless remote control, sun sensors by means of sensor technology.

Integrated light system: LED spotlights and LED lines can be combined variably, installation at the guide tracks or at a separate cover support tube (discreet cable guidance).

Dimensions

Maximum width: 600 cm at a maximum projection of 450 cm
Maximum width: 400 cm at a maximum projection of 600 cm

Tracfix Dimensions

Maximum width: 600 cm with a maximum projection of 400 cm

Operation

Removable Stainless steel crank for manual operation.

Optional: Electric motor or radio-controlled motor with wireless remote control.

Tracfix Operation

Electric motor. Optional: Radio ¬controlled motor with wireless
remote control.

Home automation integration.

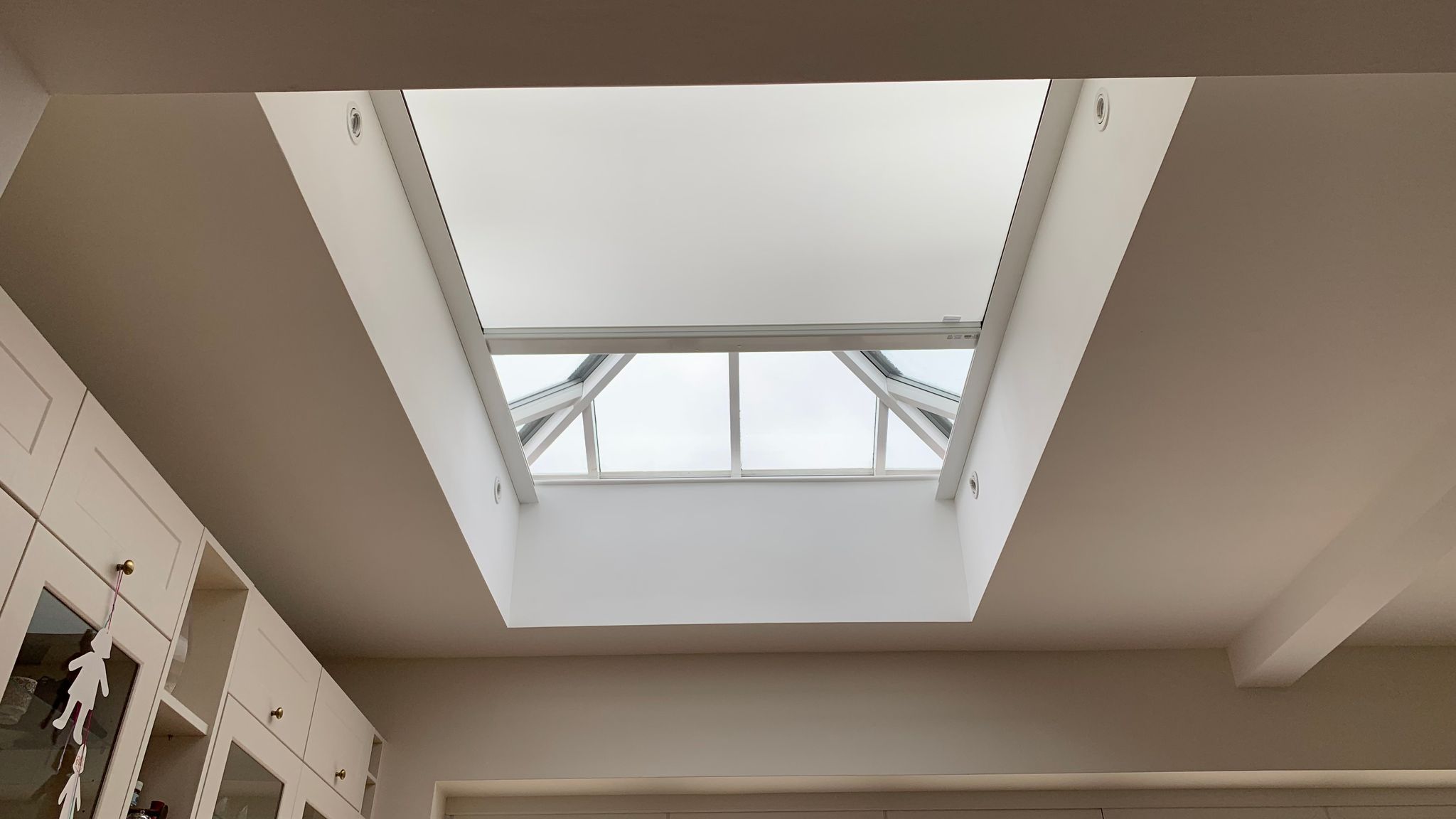

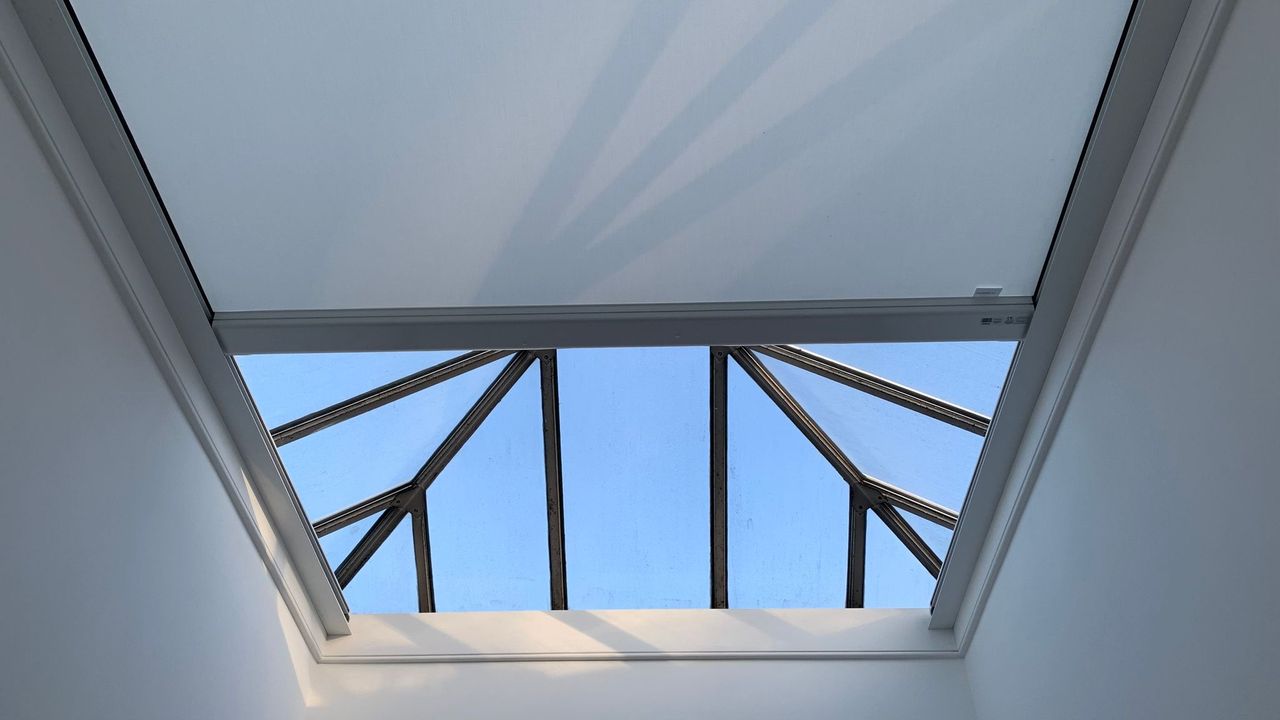

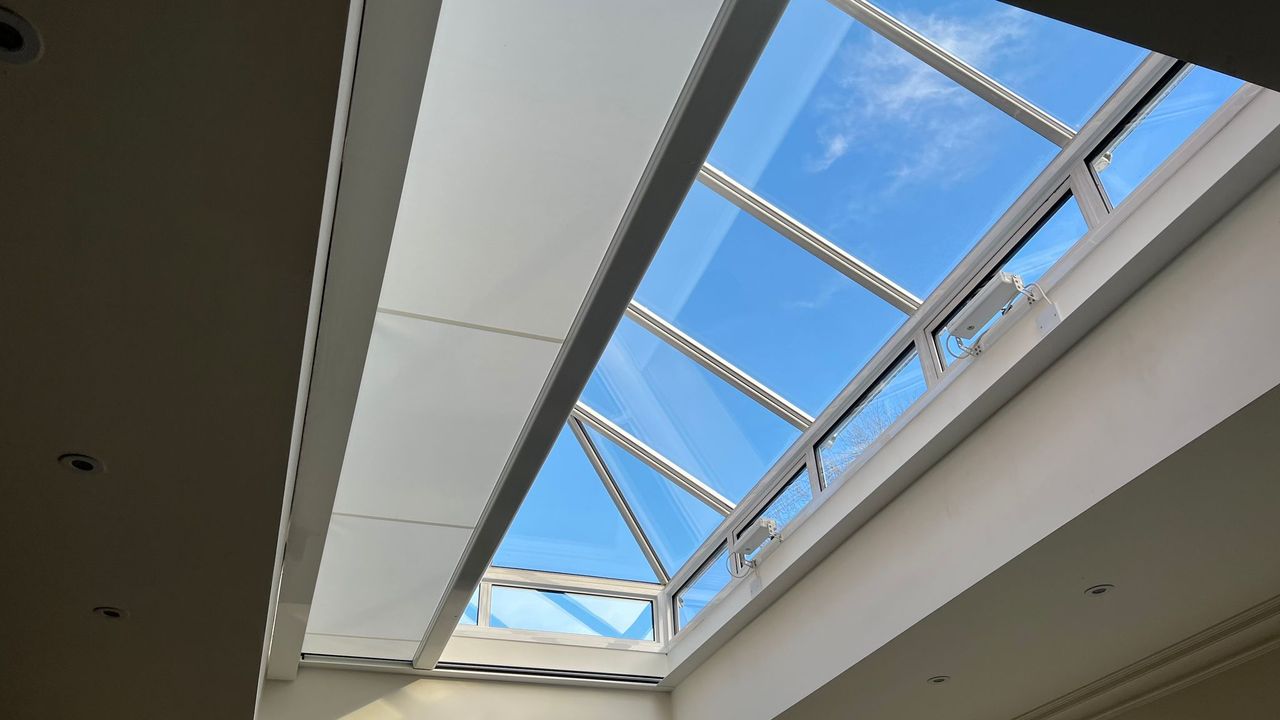

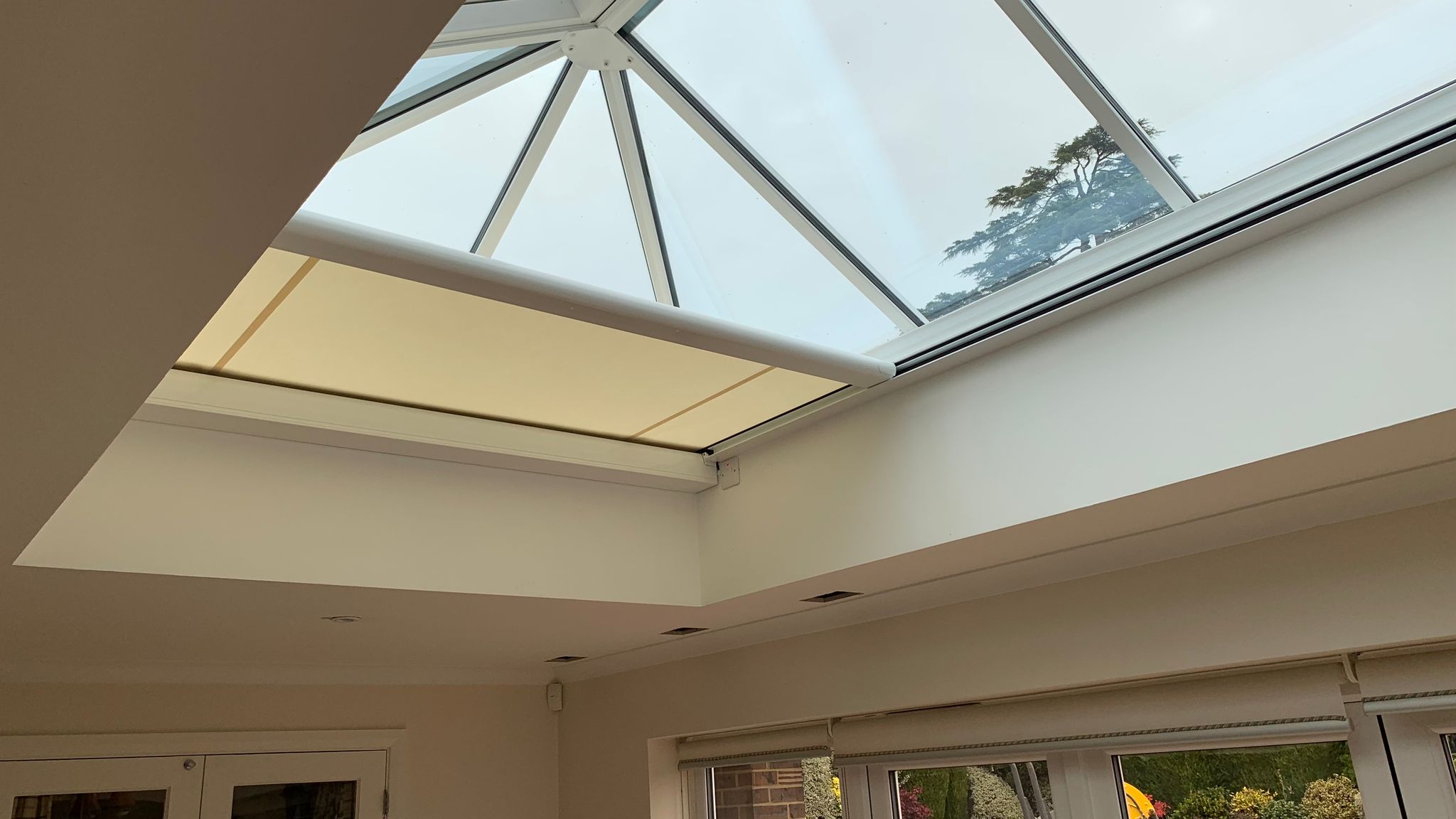

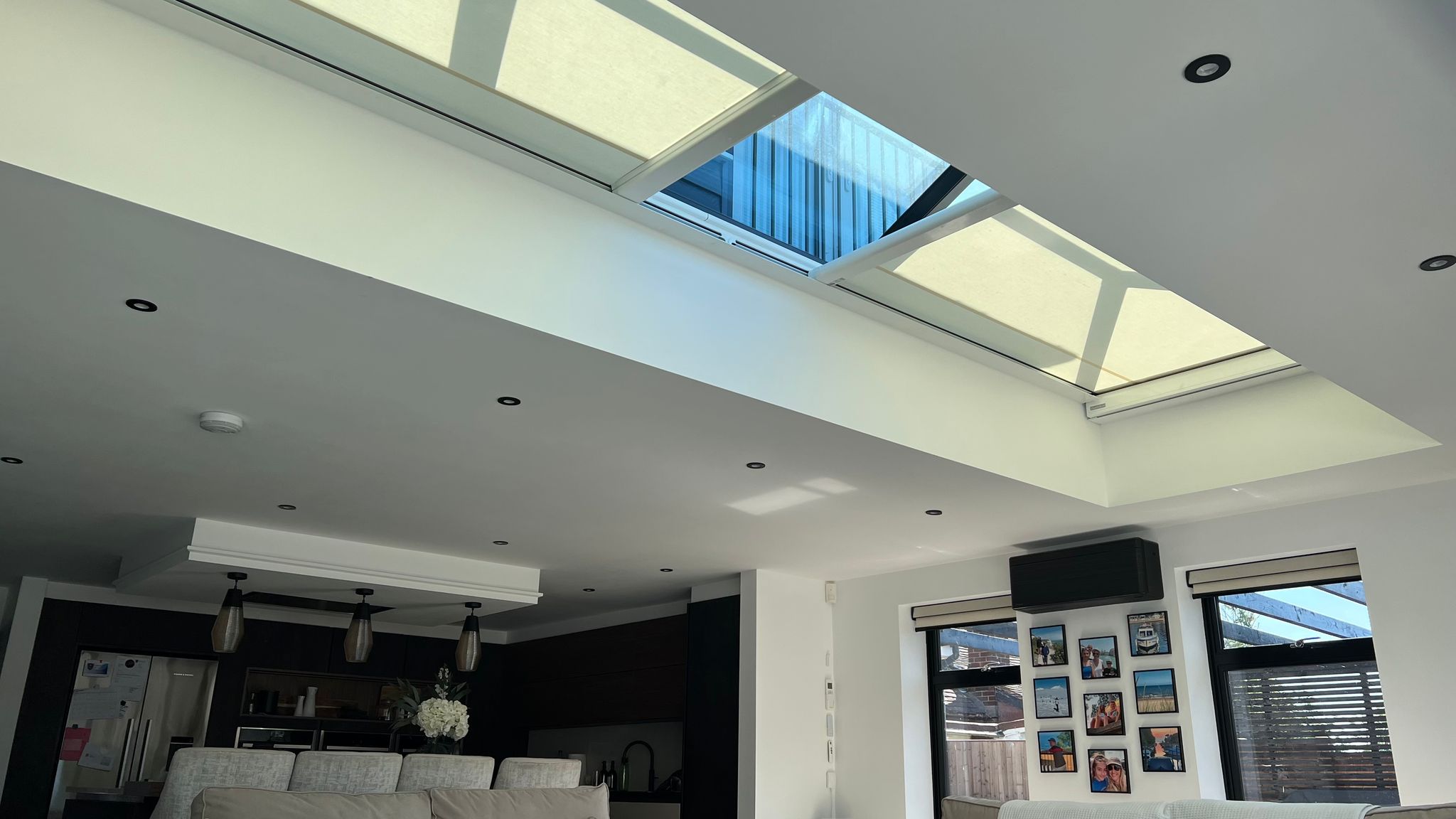

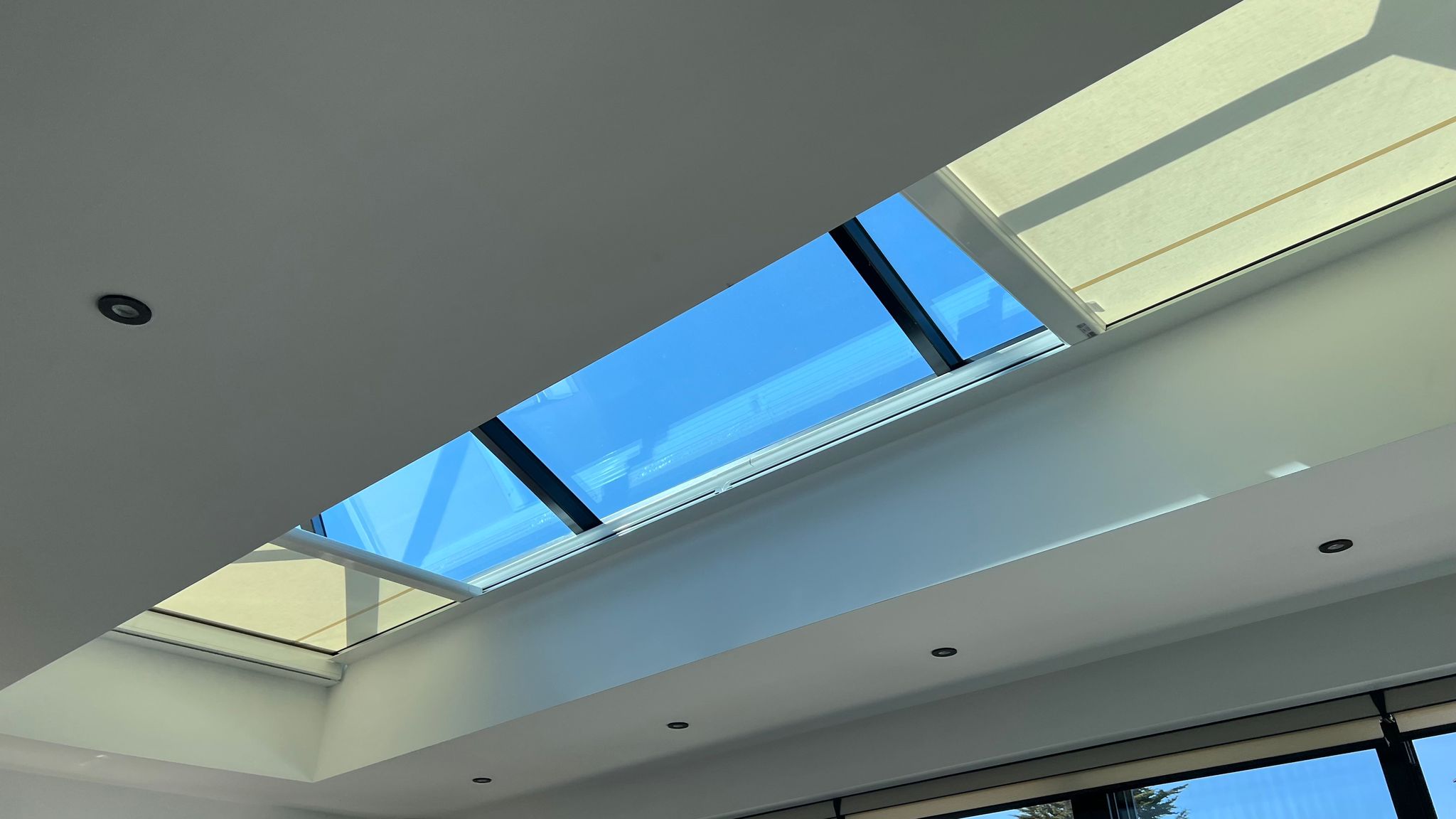

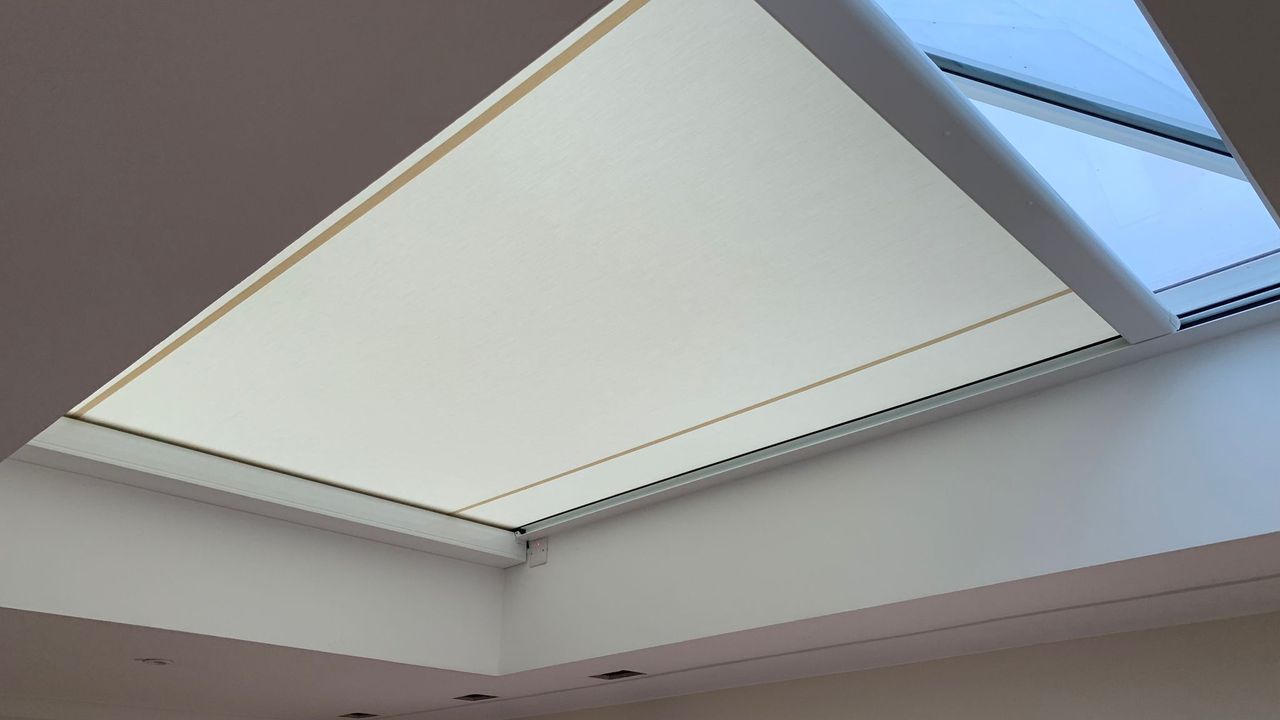

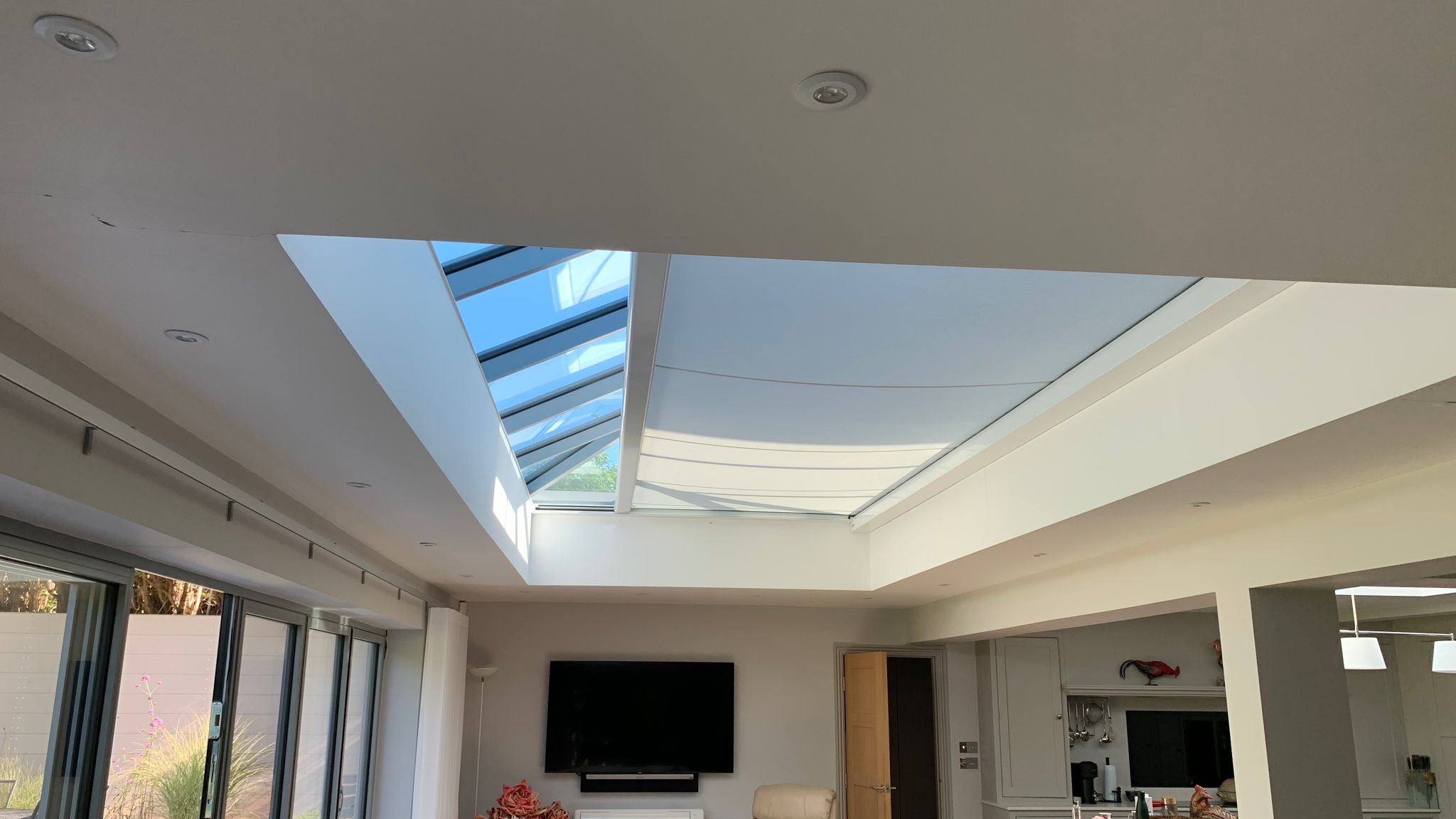

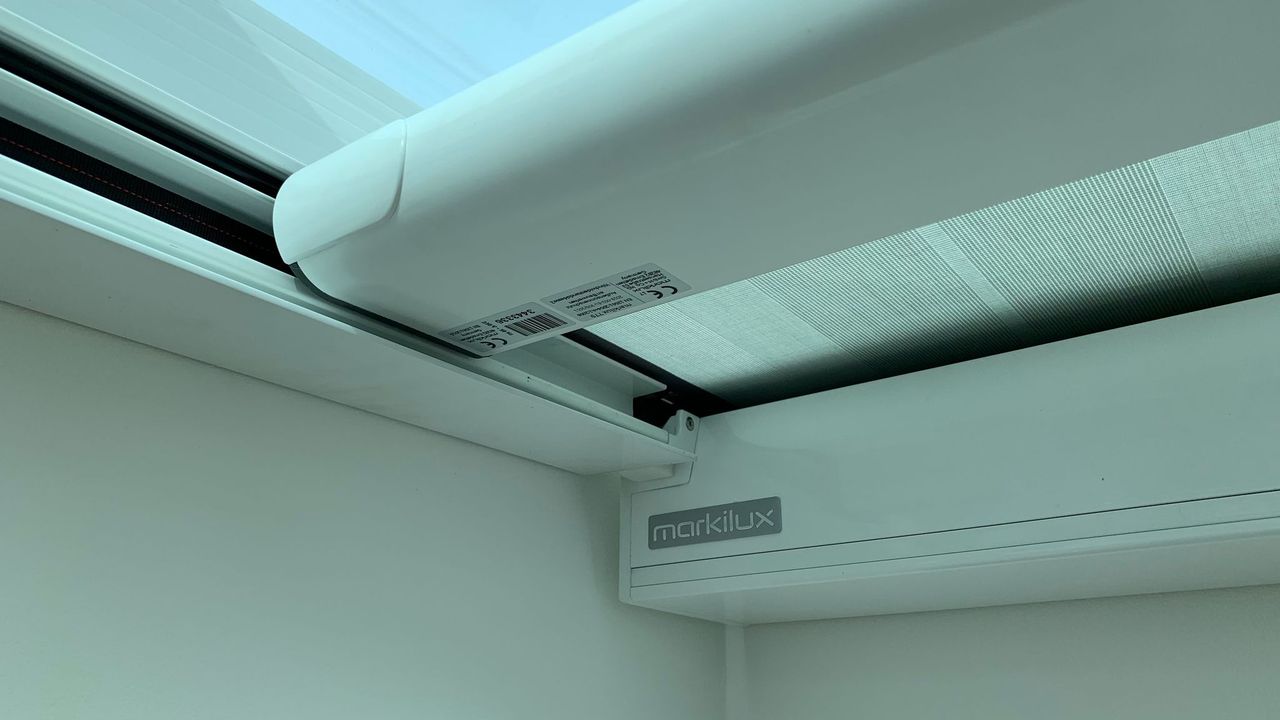

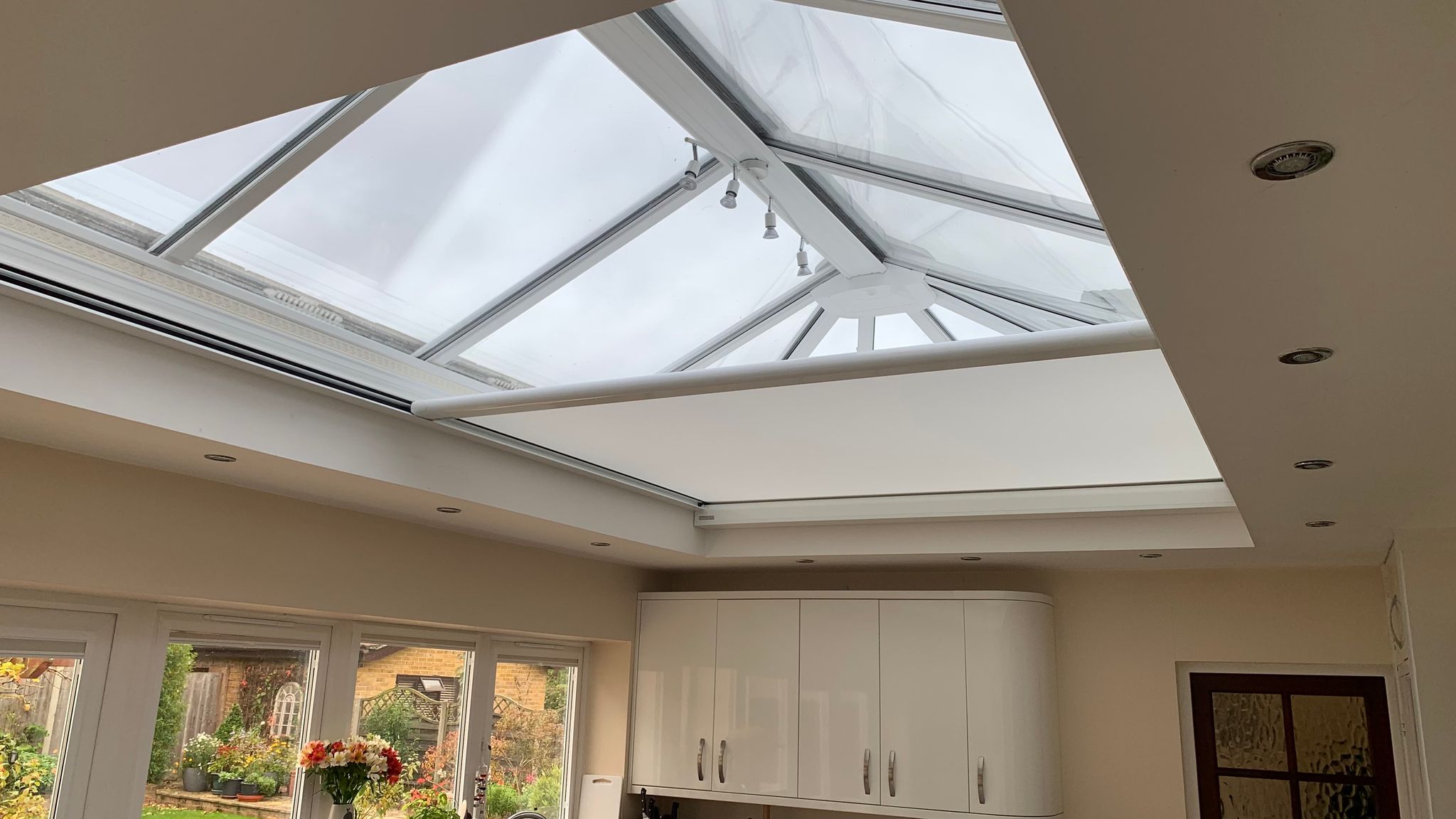

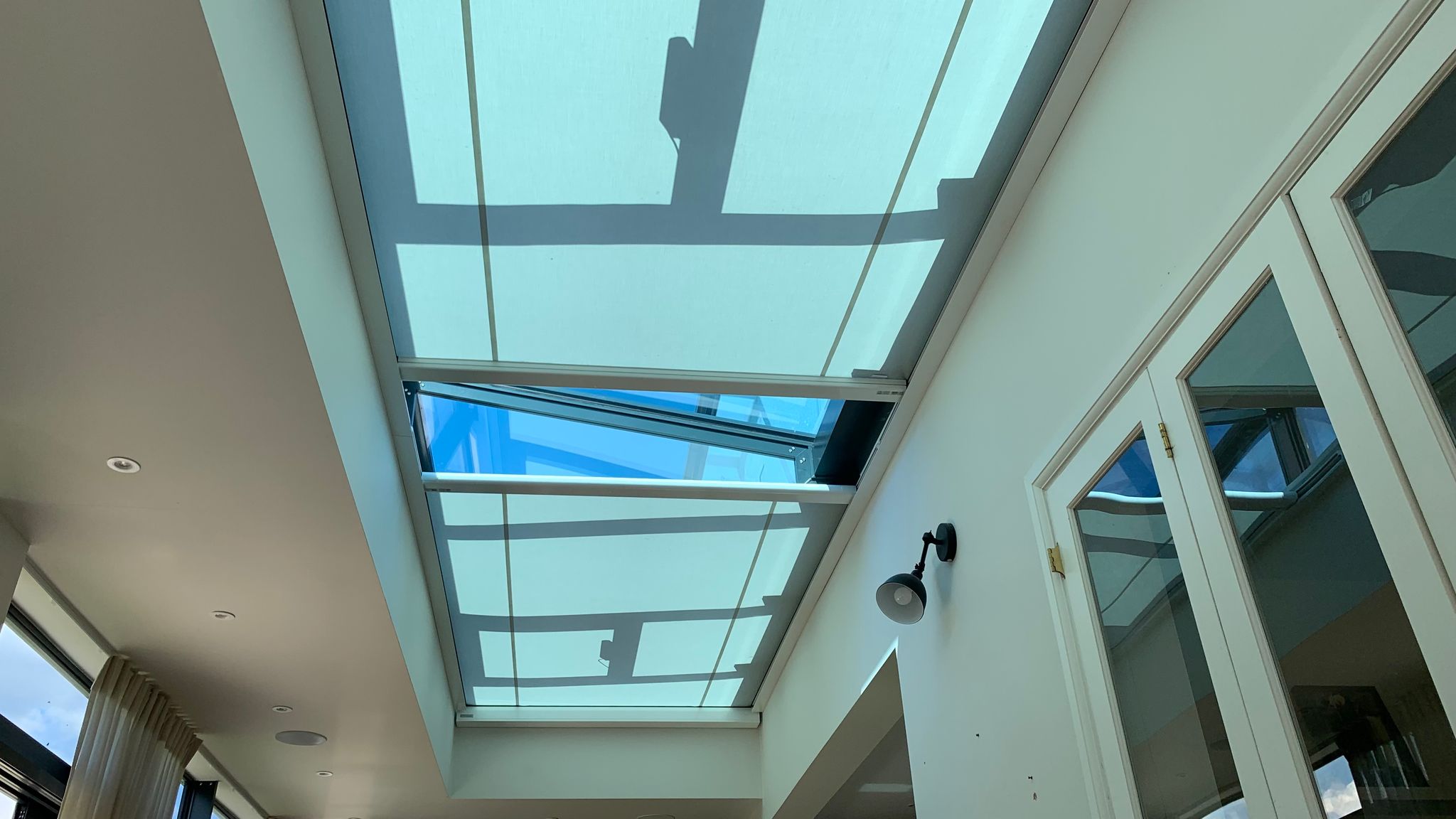

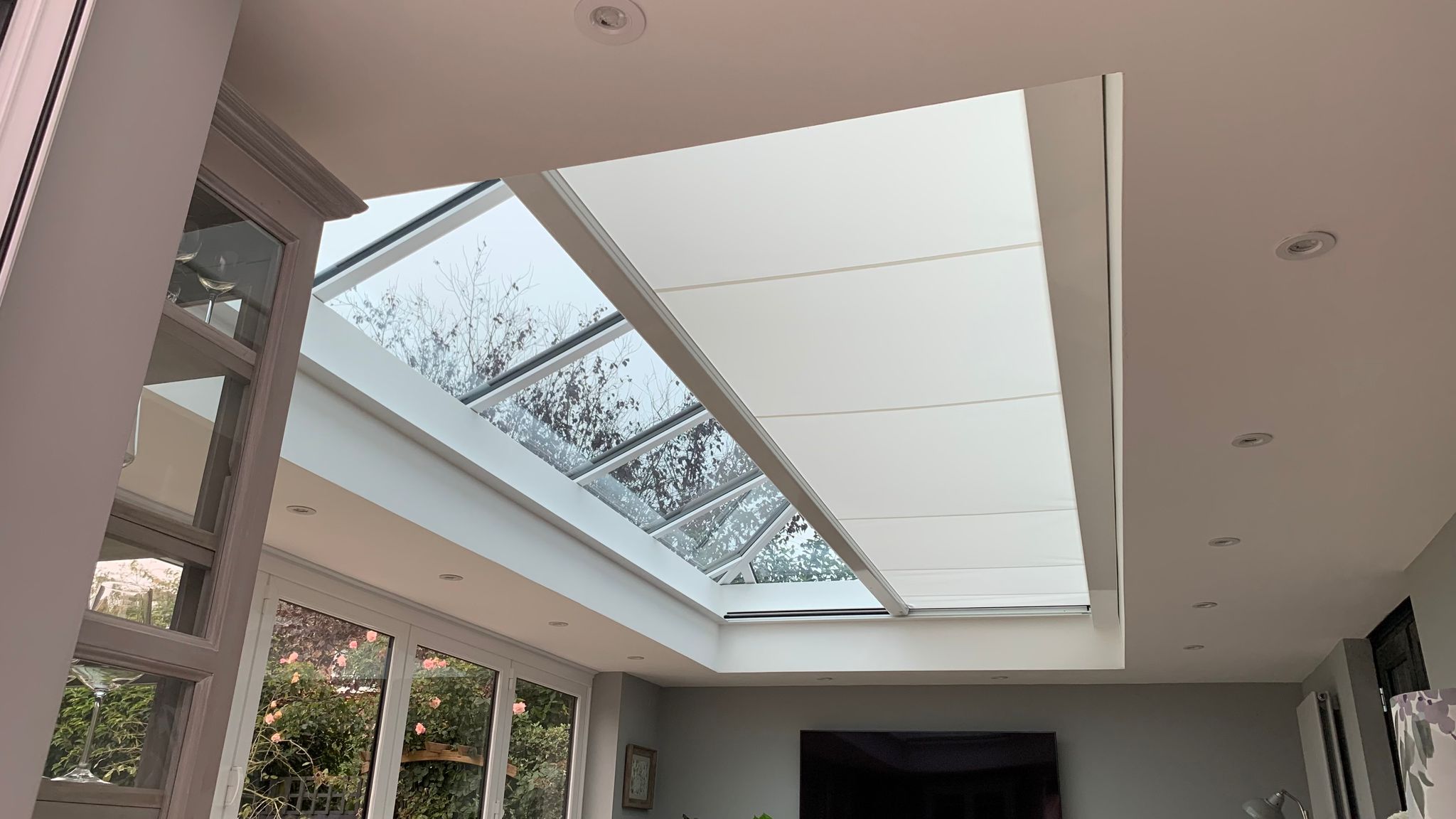

Markilux 779/879 Under-Glass Shade System Gallery
